SRNE Off-Grid Inverter 3kW 24V 60A HF2430S60-100

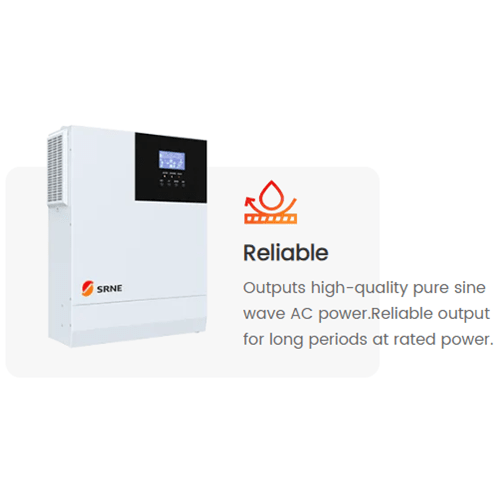

1. SRNE Off-Grid Inverter 3kW 24V 60A HF2430S60-100 adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.

2. Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.

3. Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV & Mains Electricity hybrid charging.

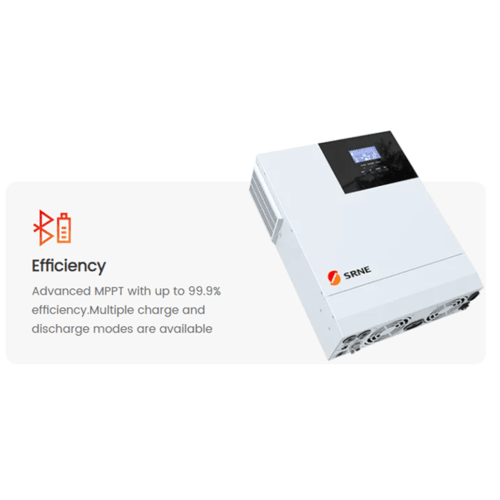

4. Advanced MPPT technology with 99.9% efficiency.

5. User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries.

6. Rocker switch for AC output control.

7. Power saving mode, reduce no-load loss.

8. Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.

9. Lithium battery activation function, allow lead-acid battery and lithium battery access.

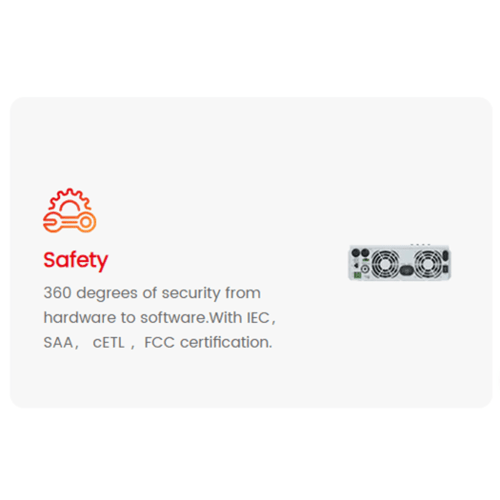

10. All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection and reverse polarity protection.

11. Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.

AC Mode
• Rated Input Voltage: 230VAC
• Input Voltage Range: 90VAC to 280VAC
• Frequency: 50Hz / 60Hz (Auto detection)
• Overload / Short Circuit Protection: Circuit Breaker
• Efficiency: >95%
• Conversion Time: 10ms
• Maximum Bypass Overload Current: 30A

Inverter Mode
• Output Voltage Waveform: Pure Sine Wave
• Rated Output Power: 3000W
• Power Factor: 1
• Rated Output Voltage: 230VAC
• Output Frequency: 50Hz / 60Hz
• Efficiency: >92%
• Loaded Motor Capability: 2HP
• Output Short Circuit Protection: Circuit Breaker
• Bypass Breaker: 30A
• Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
• Battery Voltage Range: 20VDC – 33VDC

AC Charging
• Battery Type: Lead Acid / Lithium
• Maximum Charging Current: 80A
• Charging Voltage Range: 20VDC to 33VDC
• Short Circuit Protection: Circuit Breaker and Blown Fuse
• Circuit Breaker: 30A

PV Charging
• Maximum PV Open Circuit Voltage: 100VDC
• PV Operating Voltage Range: 30VDC to 100VDC
• MPPT Voltage Range: 30VDC to 85VDC
• Maximum Input PV Power: 1400W
• PV Charging Current Range: 0A to 60A (Adjustable)
• Charging Short Circuit Protection: Blown Fuse
• Wiring Protection: Reverse Polarity Protection

Environment Limit
• Ingress Protection: IP20
• Operating Temperature Range: -15°C to +55°C
• Humidity Range: 5% to 95% (Conformal Coating Protection)
• Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
• Communication: USB / RS485(WIFI/GPRS) / Dry Node Control
